We supply parts for and build industrial
computer using the finest
selection of industrial
enclosures around.
These chassis are dependable, built to
exceed reliability standards for ISO 9000,
are exceptional
whether or not you are
integrating a communications system,
selling
an industrial product, or just
experimenting. They
can even be ruggedized for government/military usage.
If you don't see it here, just call us at
908-931-1390.
Please select a category. Our Branded
Products catalog includes other components
as well.
Click a Section to Jump To:
Industrial Chassis
|
ATX /
EATX Chassis
|
Branded Products
INDUSTRIAL CHASSIS
Solid, Durable,
Reliable and Easy to Maintain
JUMP TO:
Aremo |
5.25 Embed |
1U |
2U |
3U |
4U |
5U |
6U |
Keyboard/Drawer |
I-Node |
Monitor |
Accessory
|
AREMO Chassis |
|
Model Name |
Description |
|
AREMO-4205
(click image to
enlarge) |
19" 4U industrial
rackmount chassis
|
Construction |
Heavy-duty
steel with
aluminum
front panel |
|
Drive Bay |
5.25" x3
(External) +
3.5" HDD x2
(Internal) |
|
Card
Retainer |
Three
locations
for one card
retainer |
|
Air Filter |
One
replaceable
air filter |
|
Cooling Fan |
one 12cm and
one 8cm
ball-bearing
cooling fans |
|
Indicator |
Power on/off
x1, HDD x1 |
|
Switch |
Power On/Off
(x1), System
reset (x1) |
|
Speaker |
One 8 ohm
speaker |
|
Connector |
4 USB ports
on front |
|
Standard
Color |
Silver |
|
Dimension |
19" (W) x
20.7" (D) x
7" (H) |
|
Weight |
Net: 33 lbs.
Gross: 35.5
lbs. |
|
Backplane |
PBP-14I:
14-slot ISA
backplane
PBP-14AC:
14-slot
(12xPCI)
active PICMG
backplane
PBP-14A7:
14-slot
(7xPCI)
active PICMG
backplane
PBP-14P4:
14-slot
(4xPCI)
PICMG
backplane
PBP-13D4:13-slot
dual-system
PICMG
backplane |
|
Power Supply |
ORION-D3501P
optional |
|
|
AREMO-4265
(click image to
enlarge) |
19" 4U industrial
rackmount chassis
|
Construction |
Heavy-duty
steel |
|
Drive Bay |
3.5" x 3 +
5.25" x2
(Internal) |
|
Card
Retainer |
Three
locations
for one card
retainer |
|
Air Filter |
One
replaceable
air filter |
|
Cooling Fan |
one 12cm and
one 8cm
ball-bearing
cooling fans |
|
Indicator |
Power on/off
x1, HDD x1 |
|
Switch |
Power On/Off
(x1), System
reset (x1) |
|
Speaker |
One 8 ohm
speaker |
|
Connector |
4 USB ports
on front |
|
Standard
Color |
Silver |
|
Dimension |
19" (W) x
25.4" (D) x
7" (H) |
|
Weight |
Net: 44 lbs.
Gross: 48.5
lbs. |
|
Backplane |
PBP-20l:
20-slot ISA
backplane
PBP-20Q3:
20-slot 4
system PICMG
backplane
PBP-19Al:
19-slot (18
x PCI)
active PICMG
backplane
PBP-19AC:
19-slot
(12xPCI)
active PICMG
backplane
PBP-19P4:
19-slot
(4xPCI)
active PICMG
backplane
PBP-18D4:
18-slot
dual-system
PICMG
backplane |
|
Power Supply |
ORION-D4601NP
optional |
|
|
AREMO-4185
(click image to
enlarge) |
19" 4U industrial
rackmount chassis
|
25"x3
+2
internal
3.5"
HDD
drive
bays
for
RAID
0,
1, 5
& CD-ROM
2
USB
ports
at
the
front
Two
ball-bearing
cooling
fans
(12
cm
x1 +
8 cm
x1)
for
better
ventilation
Three
card
retainer
positions
One
modularized
function
panel
for
single
(default)
and
dual
(optional)
systems
PS/2
redundant
power
supply
installable
ATX
M/B
applicable,
especially
for
big-AT
sized
M/B
|
|
|
Construction |
Heavy-duty
steel
with
aluminum
front
panel |
|
Drive
Bay |
External:
5.25"x3
Internal:
3.5"
HDD
x2 |
|
Air
Filter |
Three
locations
for
one
card
retainer |
|
Cooling
Fan |
One
12cm
and
One
8cm
ball-bearing
cooling
fans |
|
Indicator |
Power
On/Off
(x1)
+
HDD
(x1) |
|
Switch |
Power
On/Off
(x1),
System
reset
(x1) |
|
Connector |
2
USB
ports
on
the
front |
|
Standard
Color |
Silver |
|
Dimension |
19"
(W)
x
18.1"
(D)
x 7"
(H) |
|
Weight |
Net:
29.8
lbs.
Gross:
32
lbs. |
|
Backplane |
PBP-14I
(14
slots
ISA)
PBP-14AC
(14
slots
active
PICMG
backplane)
PBP-14A7
(14
slots
active
PICMG
backplane)
PBP-14P4
(14
slots
PICMG
backplane)
PBP-13D4
(13
slots
dual
system
PICMG
backplane) |
|
Power
Supply |
PW-330ATXE-12V
(Optional) |
|
|
|
AREMO-2173E
(click image to
enlarge) |
19" 2U industrial
rackmount chassis
|
Construction |
Heavy-duty
steel |
|
Drive Bay |
External:
Slim type
CD-ROM (x1)
+ Hot-swap
3.5" HDD
(x2) |
|
Air Filter |
One
replaceable
air filter |
|
Cooling Fan |
Two 8 cm
ball-bearing
fans |
|
Indicator |
HDD LED (x1)
+ Power LED
(x1) |
|
Switch |
Power On/Off
(x1), System
reset (x1) |
|
Speaker |
One 8 ohm
speaker |
|
Connector |
2 USB ports
on front |
|
Standard
Color |
Silver,
Beige, Black |
|
Dimension |
19" (W) x
17.4" (D) x
3.5" (H) |
|
Weight |
Net: 23.1
lbs.
Gross: 25.3
lbs. |
|
Backplane |
PBP-06V4 :
Vertical 6
slots PICMG
backplane
PBP-06I :
Vertical 6
slots ISA
backplane |
|
Power Supply |
PW-330ATXE-12V
optional |
|
|
AREMO-3194
(click image to
enlarge) |
19" 3U industrial
rackmount chassis
|
Main
Features |
-
IEEE
1394
port
and
two
USB
ports
on
the
front
panel
-
Dedicate
cooling
fans
for
expiring
the
heat
on
the
hot
spots
within
the
chassis
-
Dustproof
air
filter
for
ease
of
clean
and
exchange
-
Lockable
front
door
provides
better
security
-
Thumb
lock
for
better
security
and
easy
to
operate
system
|
|
Construction |
Heavy-duty
steel |
|
Drive Bay |
External:
5.25"x2
+3.5"x1;
Internal:
3.5"x1 |
|
Air Filter |
Two
replaceable
air filter
at front
|
|
Cooling Fan |
Two 8 cm
ball-bearing
fans |
|
Indicator |
HDD LED (x1)
+ Power LED
(x1) |
|
Switch |
Power On/Off
(x1), System
reset (x1) |
|
Speaker |
One 8 ohm
speaker |
|
Connector |
2 USB ports
and 1 IEEE
1394 port on
the front
panel
|
|
Standard
Color |
Silver,
Beige, Black |
|
Dimension |
19" (W) x
19.4" (D) x
5.25" (H) |
|
Weight |
Net: 35.3
lbs.
Gross: 39.7
lbs. |
|
Backplane |
PBP-06V4 :
Vertical 6
slots PICMG
backplane
PBP-06I :
Vertical 6
slots ISA
backplane |
|

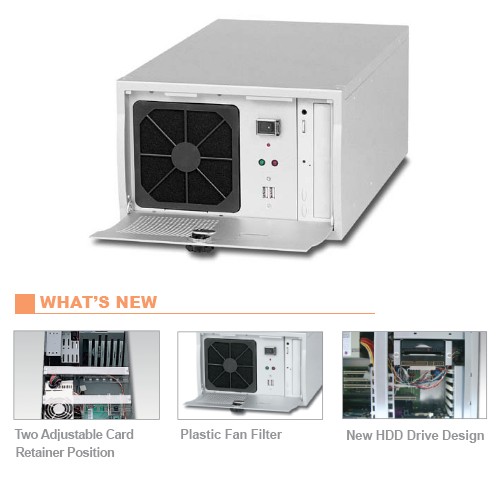

AREMO-6163
(click image to
enlarge) |
6-slot full-sized
industrial node
chassis (Shoe-box)
|
Construction |
Heavy-duty
steel |
|
Drive Bay |
3.5" x 2
(Internal) +
5.25" x 1
(External) |
|
Card
Retainer |
Two
locations
for one card
retainer |
|
Air Filter |
One
replaceable
air filter
at the front
door |
|
Cooling Fan |
One 12cm
ball-bearing
fans |
|
Indicator |
Power on/off
x1, System
reset x1 |
|
Switch |
Power On/Off
(x1), System
reset (x1) |
|
Speaker |
One 8 ohm
speaker |
|
Connector |
2 USB ports
on front
panel |
|
Standard
Color |
Silver |
|
Dimension |
10.24" (W) x
16.56" (D) x
6.77" (H) |
|
Weight |
Net: 18.7
lbs.
Gross: 20.9
lbs. |
|
Backplane |
PBP-06I:
6-slot ISA
PICMG
backplane
PBP-06P4:
6-slot (4 x
PCI) PICMG
backplane
PBP-06P3:
6-slot (3 x
PCI) PICMG
backplane |
|
Power Supply |
ORION-D3501P
optional |
|
AREMO-7013
(click image to
enlarge) |
19" 2U industrial
rackmount chassis
for embedded M/B
Featuring:
-
One slim CD-ROM
and two hot-swap
3.5" HDD
-
2 USB ports at
the front
-
Two 8 cm
ball-bearing
cooling fans for
better
ventilation
-
One power On/Off
switch with
protection cap
and one
touch-free reset
for
secure access
-
Field
replaceable PS/2
power supply
applicable for
ease of
maintenance
-
Internal
replaceable air
filter
-
19" 2U
rack-mount
chassis meets
EIA RS-310C
industrial
standard
|
Construction |
Heavy-duty
steel |
|
Drive Bay |
External:
Slim type
CD-ROM (x1)
+ Hot-swap
3.5" HDD
(x2) |
|
Air Filter |
Two
replaceable
air filter |
|
Cooling Fan |
Two 8 cm
ball-bearing
fans |
|
Indicator |
HDD LED (x1)
+ Power LED
(x1) |
|
Switch |
Power On/Off
(x1), System
reset (x1) |
|
Speaker |
One 8 ohm
speaker |
|
Connector |
2 USB ports
on front |
|
Standard
Color |
Silver,
Beige, Black |
|
Dimension |
19" (W) x
17.4" (D) x
3.5" (H) |
|
Weight |
Net: 23.1
lbs.
Gross: 25.3
lbs. |
|
Riser Card |
PEP-5022: 2
PCI slots |
|
Power Supply |
PW-330ATXE-12V
(Optional) |
|
AREMO-8164
(click image to
enlarge) |
8-slot full-sized
industrial node
chassis (Shoe-box)
Featuring:
-
Two external
5.25" for CD-ROM
or mobile rack,
one external
3.5" FDD and one
internal
3.5" HDD drive
bays, easy to
install software
and mirror disk
(RAID1)
-
Lockable front
door provides
better security
-
One replaceable
air filter for
easy cleaning
-
One 12 cm
ball-bearing
cooling fan for
better
ventilation
-
Two adjustable
positions for
hold-down card
retainers
provide better
protection from
vibration
-
Both 8-slot ISA
and PICMG
backplane
applicable
-
Field
replaceable
power supply
bracket for both
normal PS/2 and
PS/2 redundant
power supply
|
Construction |
Heavy-duty
steel |
|
Drive Bay |
External:
5.25" (x2)
Internal:
3.5" HDD
(x2) |
|
Card
Retainer |
Two
locations
for one card
retainer |
|
Air Filter |
One
replaceable
air filter
at the front
door |
|
Cooling Fan |
One 12cm
ball-bearing
fan |
|
Indicator |
Power On/Off
(x1) + HDD
(x1) |
|
Switch |
Power On/Off
(x1), System
reset (x1) |
|
Speaker |
One 8 ohm
speaker |
|
Connector |
2 USB ports
on front
panel |
|
Standard
Color |
Silver |
|
Dimension |
12.99" (W) x
16.56" (D) x
6.77" (H);
330 (W) x
420.8 (D) x
172 (H) mm |
|
Weight |
Net: 20.2
lbs. (10 kg)
Gross: 20.9
lbs. (9.5
kg) |
|
Backplane |
PBP-08I : 8
slots ISA
backplane
PBP-08P4: 8
slots (4 x
PCI) PICMG
backplane
PBP-08P3: 8
slots (3 x
PCI) PICMG
backplane |
|
Power Supply |
Optional
Power
supply:
ORION-D3501P |
|
|
Chassis for 5.25"
Embedded System
Board |
|
Model Name |
Description |
NEW
ARTO-100
(click image to
enlarge) |
Stand alone
control node chassis
for embedded system
board
Featuring:
-
Advanced;
Reliable;
Trusted;
Optimized new
generation
modularized
embedded
computing
platform
-
Modularized
embedded board
carrier design
for easy
assembly and
maintenance
-
Stylish
Industrial
Design of small
form factor
chassis for
embedded
application
-
70W universal
input power
supply Operating
temperature:0~45°C
For more information
call us at
908-931-1390. |

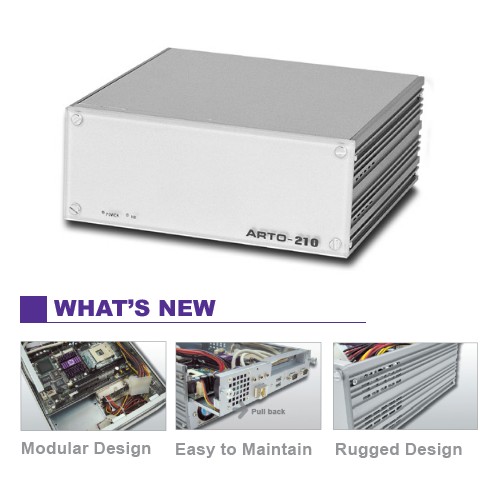

NEW
ARTO-210
(click image to
enlarge) |
Compact 2U-high
Small from factor
chassis with 3.5"
storage
and 1 PCI
slot
Featuring:
-
Advanced;
Reliable;
Trusted;
Optimized new
generation
modularized
embedded
computing
platform
-
Modularized
embedded board
carrier design
for easy
assembly and
maintenance
-
Stylish
Industrial
Design of small
form factor
chassis for
embedded
application
-
System
configuration
with one 3.5"
storage and up
to one PCI
expansion
-
Compatible with
Embedded System
Boards
PEB-3715VLA and
PEB-3636VL2A
-
200W universal
input power
supply
-
Operating
temperature:0~45°C
|

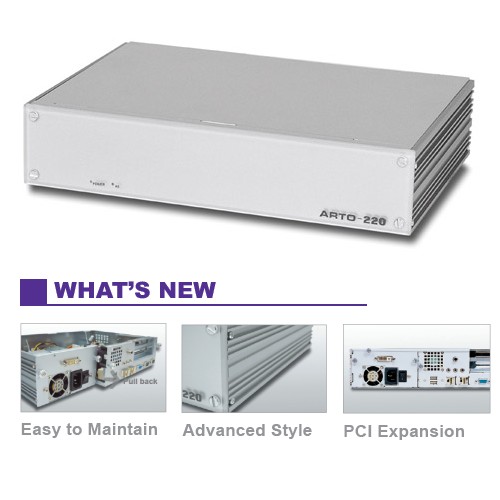

NEW
ARTO-220
(click image to
enlarge) |
1.5U high 13.6"
wide slim sized
chassis with 3.5"
storage
and 2 PCI
slots
Featuring:
-
Advanced;
Reliable;
Trusted;
Optimized new
generation
modularized
Embedded
Computing platform
-
Modularized
embedded board
carrier design
for easy
assembly and
maintenance
-
Stylish
Industrial
Design of small
form factor
chassis for
embedded
application
-
System
configuration
with one 3.5"
storage and up
to two PCI
expansion
-
Compatible with
Embedded System
Boards
PEB-3715VLA,
PEB-3636VL2A and
PEB-3718VG2A
-
200W universal
input power
supply
-
Operating
temperature:0~45°C
|

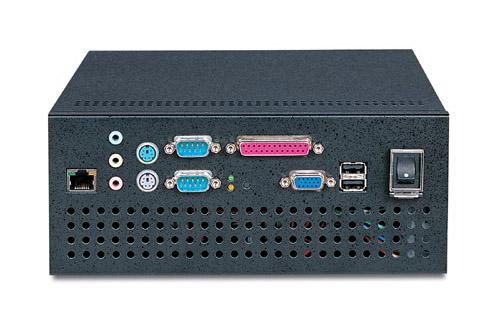

NEW
PEC-5100
(click image to
enlarge) |
Chassis for 5.25"
embedded system
board or motherboard
|
Construction |
Heavy-duty
steel |
|
Drive Bay |
Internal:
3.5" HDD x1 |
|
Cooling Fan |
Two 6 cm
(x2)
ball-bearing
cooling fans |
|
Indicator |
HDD LED (x1)
+ Power LED
(x1) |
|
Switch |
Power On/Off
with a
protection
cap (x1),
System reset
(x1) |
|
Connector |
One
dedicated
I/O board |
|
Standard
Color |
Black |
Dimension
(WxDxH)
|
216 x 241 x
88.5 mm
7.5" x 9.5"
x 3.5" |
|
Weight |
Net: 2.5kg
(5.5lb)
Gross: 3kg
(6.6lb) |
|
Riser Card |
PEP-5222R
(2-slot PCI
Riser Card) |
|
Environment |
|
|
Operating
Temperature |
0 to +55
degree
Celsius
(32 to +131
degree
Fahrenheit) |
|
Storage
Temperature |
0 to +70
degree
Celsius
(32 to +158
degree
Fahrenheit) |
|
Relative
Humidity |
5% to 95%
non-condensing |
|
|
1U
Rackmount Chassis |
|
Model Name |
Description |
PRC-1194
(click image to
enlarge)
|
19" 1U industrial
rack-mount
P4
chassis
|
MAIN
ADVANTAGES |
|
-
Single
power
supply
with
higher
+12V
output
for
Pentium®
4
processor
-
Cooling
tunnel
design
for
expiring
heat
generated
by
CPU
|
-
Power
cable
routed
beneath
the
cooling
tunnel
to
avoid
disturbance
of
air
path
-
Two
PCI
expansion
slots
for
adding
more
functions
to
the
system
|
|
Features |
Benefits |
|
250W PFC
power supply |
Sufficient
power for Intel®
Pentium®
4 processors |
|
Cooling
tunnel
design |
Better
ventilation
enhances
system
reliability
|
|
Wire routing
under the
fan module |
Prevents
blocking
of air
passage,
leading to better
ventilation |
|
Two PCI
expansion
slots |
For system
function
expansion |
|
Construction |
Heavy-duty
steel |
|
Drive Bay |
External: NB
CD-ROM (x1)
[or
equivalent
CD-RW/DVD-ROM]
+ NB FDD
(x1),
Internal:
3.5" HDD
(x2) |
|
Cooling Fan |
4 cm fans
(x4) [Two
are
ball-bearing
fans] |
|
Indicator |
Power On/Off
(x1), HDD
(x1) |
|
Switch |
Power On/Off
(x1), System
reset (x1) |
|
Speaker, Air
Filter |
N/A |
|
Connector |
Two USB
connectors
on front
panel, One
reserved COM
port cut-out |
|
Standard
Color |
Black |
|
Dimension |
19" (W) x
17" (D) x
1.7" (H) /
480.4 (W) x
432 (D) x 44
(H) mm |
|
Weight |
Net: 22.05
lbs. (10 kg)
/ Gross:
28.67 lbs.
(13 kg) |
|
Backplane |
PBP-03P2X
(3-slot
PICMG
backplane
with 2 PCI) |
|
Power Supply
(ORION-A2501
optional) |
|
Maximum
Output |
250W PFC |
|
Output
Voltage &
Current |
+5V@24A,
+3.3V@20A,
+12V@12A,
-5V@0.5A,
-12V@0.5A,
+5Vsb@1.5A |
|
Input
Voltage |
90V ~ 264V
AC, full
range |
|
Input
Frequency |
47 ~ 63 Hz |
|
Input
Current |
6A@115V,
3A@230V |
|
Efficiency |
>65% |
|
MTBF
Reliability |
105,405 hrs. |
|
Certification |
UL, cUL, TUV,
CE, FCC |
|
Environment |
|
Operating
Temperature
Range |
32 to 104
degree
Fahrenheit
(0 to 40
degree
Celsius) |
|
Storage
Temperature
Range |
32 to 158
degree
Fahrenheit
(0 to 70
degree
Celsius) |
|
Relative
Humidity |
5% to 95%,
non-condensing |
|
 |
|
2U
Rackmount Chassis |
|
Model Name |
Description |
IRC-305
(click image to
enlarge)
|
19" 2U industrial
rack-mount chassis
|
Detachable
card cage
IRC-305 is
equipped
with a
detachable
card cage to
install the
boards more
easily.
|
|
Two fans for
better
ventilation
Two 8cm
ball-bearing
fans for
better
ventilation.
|
|
Touch-free
On/Off &
reset switch
For security
reasons, a
switch
protection
cap is
provided to
prevent
accidental
reset. |
|
|
|
Construction
Air Filter
Cooling Fan
Disk Drive
Housing
Indicator
Switch
Keyboard
Connector
Keyboard
Connector
Cap
Speaker
Standard
Color
Dimension
Weight
-
Net:
10.5kg
(23.1lb)
-
Gross:
11.5kg
(25.3lb)
|
Backplane
Power Supply
(PW-250)
Maximum
Output
Output
Voltage &
Current
Input
Voltage
Input
Frequency
Input
Current
Efficiency
MTBF
Reliability
Safety
-
UL, CSA,
TÜV,
FCC, CE,
CB
Environment
Operating
Temperature
Storage
Temperature
Relative
Humidity
|
|
PRC-2193
(click image to
enlarge)
|
19" 2U industrial
rack-mount chassis
|
Visible
drive cover
Switches are
inside the
drive cover
of PRC-2193
for better
security
control.
|
|
Two fans for
better
ventilation
Two 8cm
ball-bearing
fans are
equipped for
better
ventilation. |
|
Smart PCI
Raiser cards
for
motherboard
PRC-2193 is
built with 2
PCI riser
cards (two
PCI slots)
for greater
compatibility.
|
|
Space for
dual 3.5"
HDD in
PRC-2193
PRC-2193
reserves two
3.5" HDD
drive bays
behind the
fan set for
higher
system
performance.
|
|
Well
designed
backplane
for
PRC-2193P
PRC-2193P
can hold
PBP-06V4
to offer 4
PCI slots to
PICMG system
with
detachable
card cage.
|
|
Space for
3.5" HDD in
PRC-2193P
PRC-2193P
reserves one
3.5" HDD
drive bay
between
power supply
and FDD.
|
 |
|
-
Pentium®
4
processor
based
sloution
for both
M/B and
SBC
-
AGP
riser
card and
rear
panel
optional
-
19"
rack-mount
chassis
meets
EIA
RS-310C
industrial
standard
-
Rugged
construction
and
design
for
harsh
industrial
environment
-
Power
On/Off
switch
with LED
indicator...
|
-
...and a
reset
switch
inside
the
lockable
door
-
Two
cooling
fans
generate
positive
air for
better
ventilation
-
Easily
installed
drive
bracket
with
shock-resistant
cushion
and
well-conductive
rubber
-
Special
design
for 4
full-length
cards
with
detachable
card
cage
|
|
Features |
Benefits |
|
Front
replaceable
air filter
|
For easy
cleaning
|
|
Dual
ball-bearing
cooling fans
|
Better
ventilation
to enhance
system
reliability
|
|
Front door
equipped
with a key
|
Better
security
control for
the system
|
|
Field
replaceable
PS/2 power
supply
|
Easy for
maintenance
|
|
Construction |
Heavy-duty
steel |
|
Drive Bay |
PRC-2193P
External:
5.25" (x1),
3.5" (x1)
Internal:
3.5" (x1)
PRC-2193
External:
5.25" (x1),
3.5" (x1)
Internal:
3.5" (x2) |
|
Cooling Fan |
Two 8 cm
ball-bearing
cooling fans |
|
Indicator |
Power On/Off
(x1), HDD
(x1) |
|
Switch |
Power On/Off
(x1), System
reset (x1) |
|
Speaker |
One 8.
speaker |
|
Standard
Color |
Beige or
Black |
|
Dimension |
19" (W) x
19.5" (D) x
3.5" (H)
482.6 (W) x
495.1 (D) x
88.6 (H) mm |
|
Weight |
Net: 23.1
lbs. (10.5
kg)
Gross: 25.3
lbs. (11.5
kg) |
|
Backplane |
PBP-06V4
(Vertical
6-slot
backplane
with 4 PCI
for
PRC-2193P) |
|
|
|
|
Power Supply
(PW-330ATXE-12V
optional) |
|
Maximum
Output |
330W
|
|
Input
Voltage |
90V ~ 132V,
180 ~ 264V
AC
selectable |
|
Input
Frequency |
47 ~ 63 Hz |
|
Input
Current |
10A@115V,
5A@230V |
|
Efficiency |
>70% |
|
MTBF
Reliability |
100,000 hrs. |
|
Certification |
UL, cUL, TUV,
CE, FCC |
|
|
|
|
Environment |
|
Operating
Temperature
Range |
32 to 104
degree
Fahrenheit
(0 to 40
degree
Celsius) |
|
Storage
Temperature
Range |
32 to 158
degree
Fahrenheit
(0 to 70
degree
Celsius) |
|
Relative
Humidity |
5% to 95%,
non-condensing |
|
PRC-2204
(click image to
enlarge)
|
19" 2U rack-mount
Intel® Pentium® 4
processor based
system platform
|
|
|
-
Support
for dual
Intel®
Xeon™
processor
based
ePCI-X
SBC (iROBOT-8820VG2)
-
One NB
CD-ROM,
one NB
FDD and
two 3.5"
HDD
drive
bays
-
Cooling
tunnel
design,
between
SBC and
PSU, for
expiring
heat
generated
by CPU
|
-
Two 8 cm
cooling
fans
with one
replaceable
filter
at the
front
and one
4 cm
cooling
fan at
the back
-
Four LED
indicators
for
power
on/off,
hard
drive
active
and
Ethernet
status
-
Detachable
card
cage
design
for ease
of
installation
of SBC
and
add-on
card
|
|
Construction |
Heavy-duty
steel |
|
Drive Bay |
External:
Notebook(NB)
size CD-ROM
(x1) + NB
FDD (x1)
Internal:
3.5" HDD
(x2) |
|
Air Filter |
N/A |
|
Cooling Fan |
Two 8cm fans
at the front
/ One 4cm
cooling fan
at the back |
|
Indicator |
Power On/Off
(x1), HDD
(x1),
Ethernet
activity
(x2) |
|
Switch |
Power On/Off
(x1), System
reset (x1) |
|
Speaker |
N/A |
|
Connector |
Two USB
connectors
on front
panel
One reserved
COM port and
PRT port on
the rear
panel
Two USB, one
PS/2
keyboard/mouse
One COM
ports
available
through the
PA-I1KUC
daughter
board on the
rear panel |
|
Standard
Color |
Black |
|
Dimension |
19" (W) x
19.78" (D) x
3.48" (H)
481.6 (W) x
502.4 (D) x
88.4 (H) mm |
|
Weight |
WIth Single
Power supply
unit (PSU):
Net: 50.7
lbs. (23 kg)
Gross: 57.3
lbs. (26 kg)
With
Redundant
PSU:
Net: 56.2
lbs. (25.5
kg)
Gross: 62.8
lbs. (28.5
kg) |
|
Backplane |
PBP-06V564
(Vertical
6-slot PICMG
1.2
backplane
with 5
PCI-X) |
|
|
|
|
Power Supply
(Single:
ORION-B4001
/ Redundant:
ORION-B3502
optional) |
|
Maximum
Output |
Single: 400W
PFC
Redundant:
350W PFC
|
|
Output
Voltage &
Current |
Single:
+5V@33A,
+12V@25A,
-5V@0.8A,
-12V@1.0A,
+3.3V@28A,
+5sb@2.0A
Redundant:
+5V@35A,
+12V@22A,
-5V@0.5A,
-12V@0.8A,
+3.3V@20A,
+5Vsb@2.0A |
|
Input
Voltage |
Single: 90V
~ 264V AC,
full range
Redundant:
90V ~ 264 AC
full range |
|
Input
Frequency |
47 ~ 63 Hz |
|
Input
Current |
Single:
7A@115V AC,
3.5A@230V |
|
Efficiency |
Single: >70%
Redundant:
>63% |
|
MTBF
Reliability |
Single:
87,961 hrs.
Redundant:
75,145 hrs. |
|
Certification |
UL, cUL, TUV,
CE, FCC |
|
|
|
|
Environment |
|
Operating
Temperature
Range |
32 to 104
degree
Fahrenheit
(0 to 40
degree
Celsius) |
|
Storage
Temperature
Range |
32 to 158
degree
Fahrenheit
(0 to 70
degree
Celsius) |
|
Relative
Humidity |
5% to 95%,
non-condensing |
|
PRC-2204A
(click image to
enlarge)
|
The world's first
19" rack-mount PICMG
1.2 dual Intel Xeon
processor based
system platform
 |
|
-
Support
for dual
Intel®
Xeon™
processor
based
ePCI-X
SBC (IROBOT-8820VG2)
-
One NB
CD-ROM,
one NB
FDD and
two 3.5"
HDD
drive
bays
-
Cooling
tunnel
design,
between
SBC and
PSU, for
expiring
heat
generated
by CPU
|
-
Two 8 cm
cooling
fans
with one
replaceable
filter
at the
front
and one
4 cm
cooling
fan at
the back
-
Four LED
indicators
for
power
on/off,
hard
drive
active
and
Ethernet
status
-
Detachable
card
cage
design
for ease
of
installation
of SBC
and
add-on
card
|
|
|
| Features |
Benefits |
| PICMG 1.2 compliant |
Support for ePCI-X Single Board computer |
| Cooling tunnel design between SBC and power supply unit |
Better ventilation to enhance system reliability |
| Replaceable air filter |
For easy cleaning & exchange |
| Two LED indicators for Ethernet on the front panel |
Ethernet status is easy to be perceived from the front |
| Two independent PCI-X buses |
For expandability without holding back speed |
|
|
|
Construction |
Heavy-duty
steel |
|
Drive
Bay |
External:
Notebook(NB)
size
CD-ROM
(x1) +
NB FDD
(x1)
Internal:
3.5" HDD
(x2) |
|
Air
Filter |
N/A |
|
Cooling
Fan |
Two 8cm
fans at
the
front /
One 4cm
cooling
fan at
the back |
|
Indicator |
Power
On/Off
(x1),
HDD
(x1),
Ethernet
activity
(x2) |
|
Switch |
Power
On/Off
(x1),
System
reset
(x1) |
|
Speaker |
N/A |
|
Connector |
Two USB
connectors
on front
panel
One
reserved
COM port
and PRT
port on
the rear
panel
Two USB,
one PS/2
keyboard/mouse
One COM
ports
available
through
the
PA-I1KUC
daughter
board on
the rear
panel |
|
Standard
Color |
Black |
|
Dimension |
19" (W)
x 19.78"
(D) x
3.48"
(H)
481.6
(W) x
502.4
(D) x
88.4 (H)
mm |
|
Weight |
WIth
Single
Power
supply
unit (PSU):
Net:
50.7
lbs. (23
kg)
Gross:
57.3
lbs. (26
kg)
With
Redundant
PSU:
Net:
56.2
lbs.
(25.5
kg)
Gross:
62.8
lbs.
(28.5
kg) |
|
Backplane |
PBP-06V564
(Vertical
6-slot
PICMG
1.2
backplane
with 5
PCI-X) |
|
|
|
|
Power
Supply
(Single:
ORION-B4001
/
Redundant:
ORION-B3502
optional) |
|
Maximum
Output |
Single:
400W PFC
Redundant:
350W PFC
|
|
Output
Voltage
&
Current |
Single:
+5V@33A,
+12V@25A,
-5V@0.8A,
-12V@1.0A,
+3.3V@28A,
+5sb@2.0A
Redundant:
+5V@35A,
+12V@22A,
-5V@0.5A,
-12V@0.8A,
+3.3V@20A,
+5Vsb@2.0A |
|
Input
Voltage |
Single:
90V ~
264V AC,
full
range
Redundant:
90V ~
264 AC
full
range |
|
Input
Frequency |
47 ~ 63
Hz |
|
Input
Current |
Single:
7A@115V
AC,
3.5A@230V |
|
Efficiency |
Single:
>70%
Redundant:
>63% |
|
MTBF
Reliability |
Single:
87,961
hrs.
Redundant:
75,145
hrs. |
|
Certification |
UL, cUL,
TUV, CE,
FCC |
|
|
|
|
Environment |
|
Operating
Temperature
Range |
32 to
104
degree
Fahrenheit
(0 to 40
degree
Celsius) |
|
Storage
Temperature
Range |
32 to
158
degree
Fahrenheit
(0 to 70
degree
Celsius) |
|
Relative
Humidity |
5% to
95%,
non-condensing |
|
|
|
|
3U
Rackmount Chassis |
|
Model Name |
Description |
PRC-3184
(click image to
enlarge)
|
19" 3U rack-mount
chassis for ATX M/B
platform
|
|
|
-
Hard
drive
mobile
rack for
ease of
maintenance
and data
backup
-
Lockable
front
door
provides
better
security
to the
hot-swappable
hard
drive
within
the
system
|
-
Support
up to
four
expansion
slots
for
higher
expandability
-
Dustproof
air
filter
for easy
cleaning
and
exchange
|
|
Features |
Benefits |
|
Hard drive
mobile rack |
For easy
maintenance
and data
back-up |
|
Lockable
front door |
Provide
better
security to
the
hot-swappable
hard drive
within the
system |
|
More
expansion
slots |
Support up
to four
expansion
slots for
higher
expandability |
|
Exchangeable
air filter |
Dust-proof
air filter
for easy
cleaning and
exchanging |
|
Excellent
cooling
system |
Dedicated
cooling fans
for expiring
the heat on
the hot
spots within
the chassis |
|
Construction |
Heavy-duty
steel |
|
Drive Bay |
One
Notebook(slim)
size CD-ROM,
one slim FDD
and two
swappable
3.5" HDDs |
|
Air Filter |
One air
filter on
the front |
|
Cooling Fan |
One 12cm &
One 8cm
ball-bearing
cooling fans |
|
Indicator |
One Power
On/Off & One
HDD
|
|
Switch |
One Power
On/Off & One
System reset |
|
Speaker |
N/A |
|
Connector |
Two USB
connectors
on front
panel |
|
Standard
Color |
Black |
|
Dimension |
19" (W) x
17.8" (D) x
5.2" (H)
481.6 (W) x
452 (D) x
132.6 (H) mm |
|
Weight |
Net: 35.3
lbs. (16 kg)
Gross: 39.7
lbs. (18 kg) |
|
Motherboard |
Micro-ATX Or
ATX |
|
|
|
|
Power Supply
(ORION-3001PY
optional) |
|
Maximum
Output |
300W PFC |
|
Output
Voltage &
Current |
+5V@30A,
+12V@15A,
-5V@0.3A,
-12V@0.8A,
+3.3V@28A,
+5Vsb@2.0A |
|
Input
Voltage |
90V ~ 264V
AC, full
range |
|
Input
Frequency |
47 ~ 63 Hz |
|
Input
Current |
7A@115V AC,
4A@230V |
|
Efficiency |
>65% |
|
MTBF
Reliability |
100,000 hrs. |
|
Certification |
UL, cUL, TUV,
CE, FCC |
|
|
|
|
Environment |
|
Operating
Temperature
Range |
32 to 104
degree
Fahrenheit
(0 to 40
degree
Celsius) |
|
Storage
Temperature
Range |
32 to 158
degree
Fahrenheit
(0 to 70
degree
Celsius) |
|
Relative
Humidity |
5% to 95%,
non-condensing |
|
|
|
|
4U
Rackmount Chassis |
|
Model Name |
Description |
PRC-4164
(click image to
enlarge)
PRC-6162
(click image to
enlarge)
|
Designed for
wall-mount,
rack-mount and
desk-top application
|
Special
design for
the drive
bay
Uses
notebook
type device
to save
space. |
|
Can be
mounted in
different
styles
PNC-6162's
front door
can be
changed for
either
vertical or
horizontal
installation. |
|
Easy-to-use
control
panel
All the
switches and
LEDs are
located at
the front
panel for
direct
operation. |
|
Construction
Air
Filter
Cooling
Fan
Disk
Drive
Housing
-
External:
5.25"x1
-
Internal:
3.5"x1
Indicator
Switch
Mounting
Bracket
Keyboard
Connector
Keyboard
Connector
Cap
Speaker
Standard
Color
Dimension
|
Weight
Backplane
Power
Supply
Maximum
Output
Output
Voltage
&
Current
Input
Voltage
Input
Frequency
Input
Current
Efficiency
MTBF
Reliability
Safety
Environment
Operating
Temperature
Storage
Temperature
Relative
Humidity
|
|
|
PRC-4184
|
19" 4U Rack-mount
CTI Chassis |
|
RDA-209
|
19" 4U 9-drive
rack-mount disk
array chassis
|
|
RPC-500N/L
|
19" 4U industrial
rack-mount chassis |
|
RPC-500NC |
19" 4U industrial
rack-mount chassis
with 2 USB ports
|
|
RPC-500NP
|
19" 4U industrial
rack-mount chassis
|
|
RPC-520
|
19" 4U 20-slot
industrial
rack-mount chassis
|
|
RPC-520FT
|
19" 4U rack-mount
fault tolerant
server (FTS) chassis
|
|
RPC-600FT
|
19" 4U rack-mount
fault tolerant
server (FTS) chassis
|
|
|
19" 4U industrial
rack-mount chassis
for 14 full length
cards |
|
|
|
5U
Rackmount Chassis |
|
Model Name |
Description |
|
IRC-750
|
19" 5U rack-mount
CTI chassis with 6
drive bays |
|
IRC-850
|
19" 5U rack-mount
CTI chassis with 10
drive bays
|
|
|
|
6U
Rackmount Chassis |
|
Model Name |
Description |
|
IRC-860
|
19" 6U rack-mount
CTI chassis
|
|
|
|
1U
Rackmount Keyboard
Drawer |
|
Model Name |
Description |
|
IRC-210N
|
19" 1U rack-mount
keyboard drawer with
101-key keyboard
|
|
IRC-215N
|
19" 1U rack-mount
keyboard drawer with
keyboard & trackball |
|
PRA-1158
|
1U Rack-mount 8-Port
KVM Switch with 15"
LCD Display |
|
|
|
Industrial Node
Chassis |
|
Model Name |
Description |
|
AREMO-6163 |
6-slot full-sized
industrial node
chassis (Shoe-box) |
|
AREMO-8164 |
8-slot full-sized
industrial node
chassis (Shoe-box) |
|
IRC-304S
|
4-slot industrial
node chassis with NB
CD-ROM, FDD and HDD
|
|
IRC-306
|
6-slot full-sized
industrial node
chassis (Shoe-box)
|
|
IRC-306S
|
6-slot industrial
node chassis with NB
CD-ROM, FDD and HDD
|
|
IRC-308
|
8-slot full-sized
industrial node
chassis (Shoe-box)
|
|
IRC-404S
|
4-slot industrial
node chassis
|
|
PNC-5063
|
6-slot industrial
node chassis for
half-sized PCI cards
|
|
PNC-6162
|
Magic 6-slot Node
Chassis |
|
|
Rack-mount
Monitor
Enclosure
|
|
Model Name |
Description |
|
RMC-214/217
|
19" 1U Rack-mount
Keyboard Drawer with
K/B & Trackball |
|
|
|
Accessory |
|
Model Name |
Description |
|
EZDRV-300/200N
|
5.25" compact drive
set with NB CD-ROM,
FDD & space for
2.5" HDD
|
|
|
|
* Specifications are
subject to change
without notice. |
|
|
Copyright 2006
CompAmerica. All Rights Reserved.
Comp America
manufactures Turnkey Systems using the above
products, and enjoys solving customer
problems. We offer an
extensive background
in turnkey system design, manufacture and
programming. If our off-the-shelf solutions
don't satisfy
your requirements, or if you
need simple modifications to our standard
products, including custom paint or logo,
full application
programming, fulfillment,
installation, onsite service, or anything
else:
please call one of our Sales Engineers at
888-ASK-CSS-1
or
email to discuss your requirement.
|
